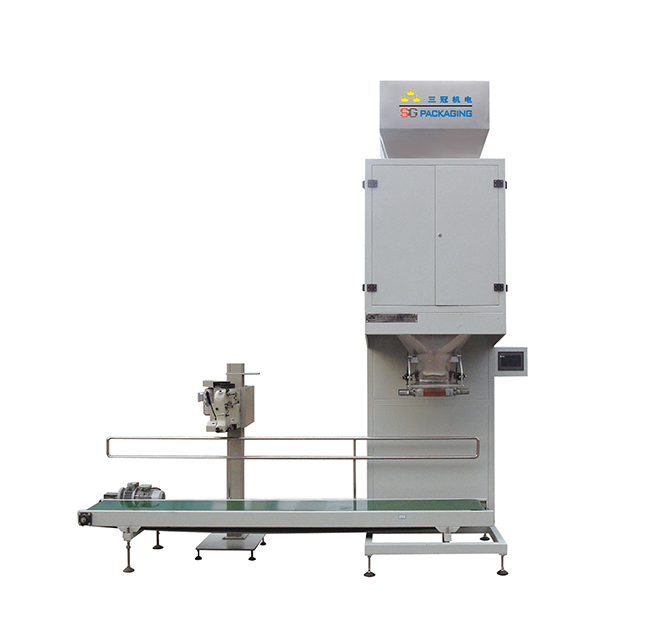

Weighing, filling and bag closing line DCS-50.

Characteristics :

Packing granular materials.
Packing Weight 10 - 50 Kg / bag.
Division value 10 g.
Packing accuracy 0.2.
Packing speed : 360 - 500 bags/h.
Power 220/380 V (50Hz).

Price : 10.650 Euro (+ VAT)

Benefits:
- adjusts the height of the sewing head and conveyor belt, depending on the height of the bag

Optionally the line can be equipped with the following devices:
- Bundle printing of the date of validity, packing, lot number, etc.
- vertical loader for feeding the silo in which the weighing and filling material of the bags is stored

Depending on the specifics of the user, closing of the bags can be done by thermal bonding instead of sewing (specific for packing in transparent polyethylene bags).

Weighing machine with 2 weighing tanks and automatic bag filling.

Characteristics :

The packaged material is granular (grain, rice, salt, sand, etc.).
Weighing range: 1 - 25 Kg / bag.
Two weighing tanks (double the weighing speed).
Tolerance: 0.2%.
Weighing / packing speed: 360 - 900 bags / hour.
Supply voltage: 380V (50Hz).
Price at request.

Benefits :
- two weighing tanks that will increase packing capacity and intake

Optionally the line can be equipped with the following devices:
- conveyor belt with variable length between 2m and 4m.
- Bundle printing of the date of validity, packing, lot number, etc.
- vertical loader for feeding the silo in which the weighing and filling material of the bags is stored

Depending on the specifics of the user, closing of the bags can be done by thermal bonding instead of sewing (specific for packing in transparent polyethylene bags).

Automatic weighing and packing line (powder)

Characteristics :

The packed material is of the powder type (flour, malt, etc.).
Weighing range: 10 - 50 Kg / bag.
Accuracy: 0.1% -0.5%.
Weighing / packing speed: 240 - 540 bags / hour.
Supply voltage: 380V (50Hz)..
Price: 9.950 Euro (+ VAT).

Optionally the line can be equipped with the following devices:
- Bundle printing of the date of validity, packing, lot number, etc.
- vertical loader for feeding the silo in which the weighing and filling material of the bags is stored

Depending on the specifics of the user, closing of the bags can be done by thermal bonding instead of sewing (specific for packing in transparent polyethylene bags).

Automatic line weighing and packing granular material (including pellets).


After weighing the material, packing is done in bags that are formatted to the desired size, made of polyethylene film in the roll with a width of max. 1080 mm.

Benefits :
- you do not need to buy stacks of polyethylene bags because the packaging plant can automatically produce sacks in transparent or printed polythene packages at sizes appropriate to the weight of the weighed material.

Weighing range: 15.0 - 25.0 Kg / bag, (according to the volumetric density of the packed material).
Weighing speed: 8 - 15 bags / min.
(100 tons/8 hours).

No. Equipment Name Item Qty. (set) Unit Price (euro)
1 Automatic VFFS Packing Machine
(SS304 stainless steel)
SGJ-Z15B 1 6.900,00
2 2-Hopper Screw Weigher SGB-1080 1 27.600,00
3 2.0m Slope Conveyor
(carbon steel)
SG-SC 1 850,00
4 Brackets & Platform
(carbon steel)
CS 1 2.950,00
5 Vertical Bucket elevator
(carbon steel)
SG-DT 1 3.000,00
Total : 41.300 Euro (Vat excl.)

VERY SOON

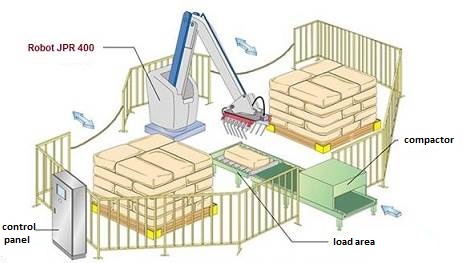

Depending on the specificity of the user, we are considering the complete automation of the bagging process of the cereal products, by joining an inductive automatic palletizing robot of the respective bags.
For this purpose, after the Automatic Weighing and Closed Bags line, the Industrial Robot for Bag Sacking can be placed.
If you want to visit us, you can see our position on the map here.
